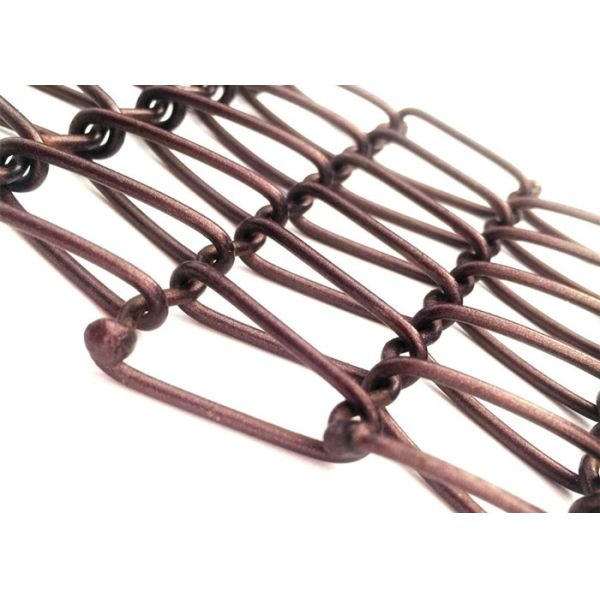

Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts 950x4880mm

Brand Name : Huihao

Model Number : spiral weave mesh

Place of Origin : China

MOQ : Negotiable

Payment Terms : L/C, T/T, Western Union.PAYPAL

Supply Ability : 1000PCS PER 30 DAYS

Delivery Time : 5-8 WORK DAYS

Packaging Details : Stardard exported wooden boxes or As your request.

Certification : ISO9001-2008

Name : Shopping Mall Ceiling Panel

FRAME TYPE : Square tube frame

frame size : 50mmx50mm

common size : 950x4880mm

weight : 29kgs per piece

mesh size : 8mmx15mm

custom design : support

Contact Now

Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts 950x4880mm

Details of Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts

1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
7.ISO9001-2008 Quality certification management system
8. 24 hours Hot line/whatsapp 0086-13363891298, wechat :535876736

frame design
surface teratment
pattern design
accessories
steel sheet frame
L type frame
V type frame
U type Frame
square tube frame
round rod frame
Spraying coated
PVD
pvdf for aluminum material
antique brass/copper
plating color for ss
colors to be your requirements
the pattern type is made of crimped rod wire and spring flat wire or round wire.
round ring
blot
screw
anchors
support steel

frame types of Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts

Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts 950x4880mm Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts 950x4880mm Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts 950x4880mm
round ring with blot frame of spiral weave wire mesh fixing bolt frame of spiral weave wire mesh square tube with blot frame of spiral weave wire mesh

other mesh patterns specification of spiral weave mesh

Specification Coding

Nominal Belt Thickness
(mm)

Lateral
Pitch of Coil wire(mm)

Coil Wire Dia. (mm)

Crimped Cross Wire Pitch down length (mm)

Crimped Cross Wire Dia (mm)

18-16-16-16

7.7

16.94

1.63

19.05

1.63

18-14-16-14

8.9

16.94

2.03

19.05

2.03

30-17-24-17

7.3

10.16

1.42

12.7

1.42

30-16-24-16

6.7

10.16

1.63

12.7

1.63

42-18-36-18

6.0

7.26

1.22

8.47

1.22

42-17-36-17

6.0

7.26

1.42

8.47

1.42

42-16-36-16

6.4

7.26

1.63

8.47

1.63

48-17-48-17

6.1

6.35

1.42

6.35

1.42

48-16-48-16

6.4

6.35

1.63

6.35

1.63

60-20-48-18

4.0

5.08

0.91

6.35

1.22

60-18-48-18

5.2

5.08

1.22

6.35

1.22

60-18-60-18

5.6

5.08

1.22

5.08

1.22

Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts 950x4880mm Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts 950x4880mm Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts 950x4880mm

applications of Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts

Spiral woven wire fabric can be used as balustrade or handrail in balcony or stairs.

Spiral woven wire fabric is used as wall cladding in the parking.

Spiral woven wire fabric is widely used as facade cladding in buildings.

Spiral woven wire fabric is widely used as space divider in the restaurants or offices.
