0.105" Dia Capacitor Discarge Cup Head Pins & Paper Washer For Securing Insulation
Quick details of Capacitor Discarge Cup Head Pins & Paper Washer
Sound Acoustic Solutions’ Cup Head Pins with Paper Washer installed is a fabricated part made up of
a weld pin and a staked on retaining washer. Cup Head Pins with Paper Washer installed are usually
applied with a capacitor discharge stud welder. They are commonly used for securing insulation and as
a hook-less lacing anchor to secure insulation inside fabricated blankets.
Cup Heads are widely accepted as labor-saving fasteners in the thermal and acoustic insulation markets
for use in industrial and commercial applications. The most popular style of Cup Head Weld Pins is
produced out of a mild steel weld nail with a galvanized-coated mild steel retaining washer.
Specification of Capacitor Discarge Cup Head Pins & Paper Washer
| base size | base material | pin diameter | pin length | pin material | finished |
| 20MM | mild steel, stainless steel, copper | 2.7MM,3MM, 3.4MM | 10MM, 25MM, 38MM | mild steel, stainless steel, copper | zinc/ copper plating |
| 25mm | mild steel, stainless steel, copper | 3mm | 10mm-65mm | mild steel, stainless steel, copper | zinc/ copper plating |
| 30mm | mild steel, stainless steel, copper | 3.4mm | 10mm-65mm | mild steel, stainless steel, copper | zinc/ copper plating |
| custom | custom | support custom | support custom | | |

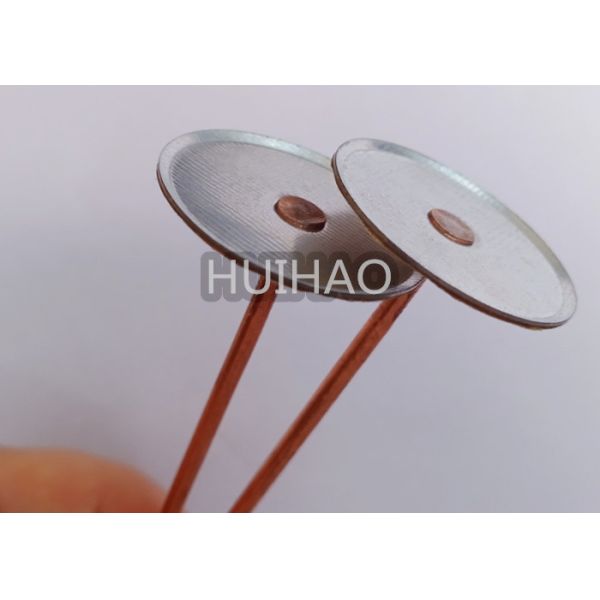

Pic of Capacitor Discarge Cup Head Pins & Paper Washer
Feature of Capacitor Discarge Cup Head Pins & Paper Washer
| features of Capacitor Discharge cup head pins&paper washer |
| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated. |
| REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| TEMPERATURE RANGE | Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS | Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |
Install of Capacitor Discarge Cup Head Pins & Paper Washer
This type of Capacitor Discharge cup head pin&paper washer is welded through the insulation, allowing
the fabrication to be done in one easy step. The head of the pin is attached to the nail, so there is no
need to add a washer.
| recommended for | pin length before welding |
| 1/2" insulation(all densities) | 12.67mm |
| 1" insulation(1-1/2"ib density) | 17.63mm |
| 1" foam | 25.55mm |
| 1"insulation(3ib densities) | 23.72mm |
| 1-1/2" insulation(all densities) | 28.42mm |
| 2"insulation(1-1/2"-2" ib density) | 37.95mm |
| 2"insulation(3ib densities) | 48.77mm |
| 3"insulation(all densities) | 69.85mm |
| 4" insulation(all densities) | 95.00mm |
Packing of Capacitor Discarge Cup Head Pins & Paper Washer
| Product | Quantity | Box size | Weight |
| 12Gauge 3/8” cup head weld pins | 1000Pcs | 26×26×8CM | 2.85KG |
| 12Gauge 7/8” cup head weld pins | 1000Pcs | 26×26×11CM | 3.5KG |
| 12Gauge 1” cup head weld pins | 1000Pcs | 26×26×11CM | 3.7KG |
| 12Gauge 1-1/8” cup head weld pins | 1000Pcs | 26×26×13CM | 4.2KG |
| 12Gauge 1-7/8” cup head weld pins | 1000Pcs | 26×26×18CM | 4.85KG |
| 12Gauge 2” cup head weld pins | 1000Pcs | 26×26×18CM | 4.95KG |
| 12Gauge 3” cup head weld pins | 1000Pcs | 26×26×18CM | 7.05KG |
| 12Gauge 4” cup head weld pins | 1000Pcs | 26×26×32CM | 7.6KG |
HUIHAO Company introuduce:
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
Special design can contact us make new mold as your pic or drawing pic !
