2-1/2inch Galvanized Steel Spindle Type Insulation Hangers For Soundproofing

Galvanized Steel Spindle Type Insulation Hangers Production Introuduce:

Product name :Spindle type Insulation hanger is called perforated base insulation pin

Base material :stainless steel ,galvanized steel

Base size :50mm in common ,other to be request

Base thickness:0.4mm

Pin material :mild steel with zinc plated, copper coated ,aluminum wire ,stainless steel wire

Pin diameter:2.7mm,3.0mm in common ,other to be request

Self locking washer:round self locking washer ,square locking washer

Application :Exterior and interior walls soundproofing

For the pin ,the material usually choose stainless steel wire ,aluminum wire ,galvainzied wire ,the

wire must be annealed ,then it is soft to bend ,easy to use

For the base ,the material must be hard and not easily deformed

The insulation pin usally install with a selt-locking washer and dome cap washer

Specification Of Galvanized Steel Spindle Type Insulation Hangers:

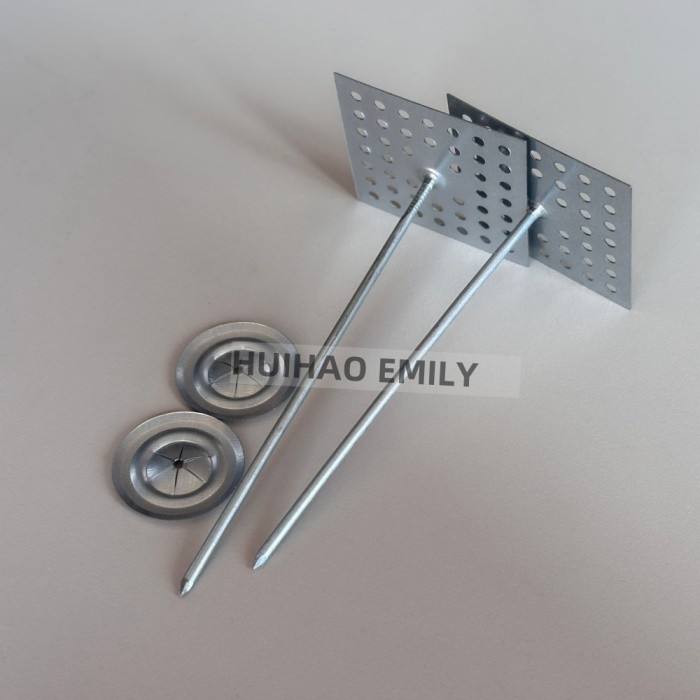

Pic of the Galvanized Steel Spindle Type Insulation Hangers :

Stainless steel SpindleType Insulation Hangers Base size :50mmx50mm ,40mmx40mm,35mmx35mm,24mmx24mm Base material :stainless steel 304/316/316L Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Galvanized steel SpindleType Insulation Hangers Base size :50mmx50mm ,40mmx40mm,35mmx35mm,24mmx24mm Base material :Galvanized steel Pin material :galvanized steel ,copper coated ,aluminum Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

SpindleType Insulation Hangers with groove pin Base size :50mmx50mm ,40mmx40mm Base material :stainless steel ,galvanized steel Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Accessories of Spindle Type Insulation Hangers

Round self locking washer Material:stainless steel ,galvanized steel Size:25mm,30mm,38mm,40mm,50mm Center hole :for fixing 2.7mm,3.0mm insulation fasteners	Square self locking washer Material:stainless steel ,galvanized steel Size:32mm,40mm,50mm,64mm Center hole :for fixing 2.7mm,3.0mm insulation fasteners
Matel dome cap washer Material:stainless steel ,galvanized steel Size:25mm,30mm,38mm,40mm,50mm Center hole :for fixing 2.7mm,3.0mm insulation fasteners	PE+metal washer Material:stainless steel ,galvanized steel Size:40mm Center hole :for fixing 2.7mm,3.0mm,3.4mm,4mm,5mm insulation fasteners

Package of the Spindle Type Insulation Hangers

The package of insulation pins : >> Package 1. 500 pcs/800pcs/1000 pcs per carton. 64 cartons per pallet. 2. to be your requirements. >>> Delivery Sample: DHL/EMS/UPS/TNT/EXPRESS Large Order: we recommend you by SEA ,or by AIR if in an emergency.

HUIHAO company FAQ :

Q1: Are you factory or trader ?

Yes ,we sell what we manufacture

Q2:How long is your delivery time?

Usually the ship time is within 7-15 days

Q3:What is your quote elements?

The size of product, material with surface treatment and the quantity

Q4:Can you provide samples?is it free or in charge ?

A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the

mold fee ,the mold fee will return back you after confirm the mass order

Q5: How can you ensure the quality?

1.we can supply CAD drawing pic for you

2.Our company have ISO certificate

2.We have working on this product for twenty years and we have experience on it ,and we

know the point you focus on

Galvanized Steel Insulation Hangers

Soundproofing Insulation Hangers

2-1/2inch Insulation Hangers

2-1/2 Inch Galvanized Steel Spindle Type Insulation Hangers For Soundproofing Images
